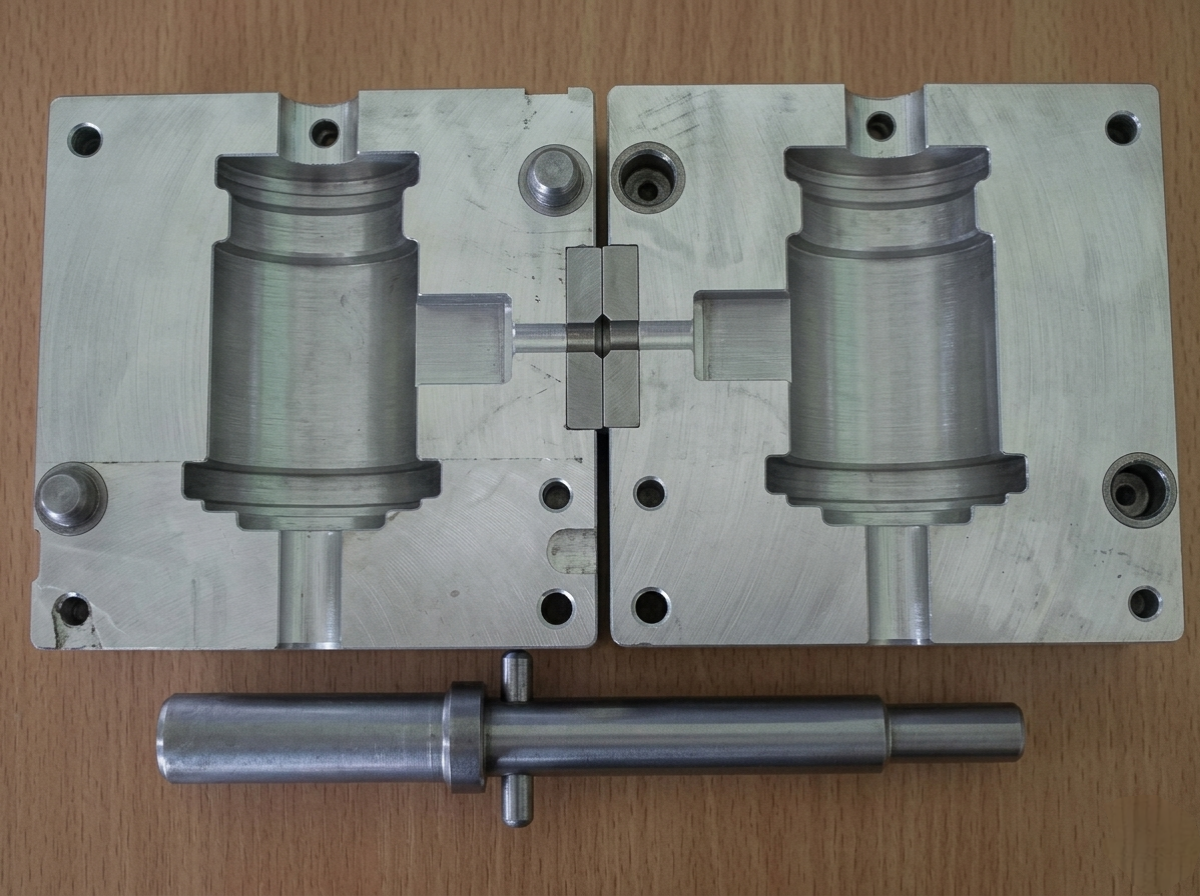

Die Design Shop

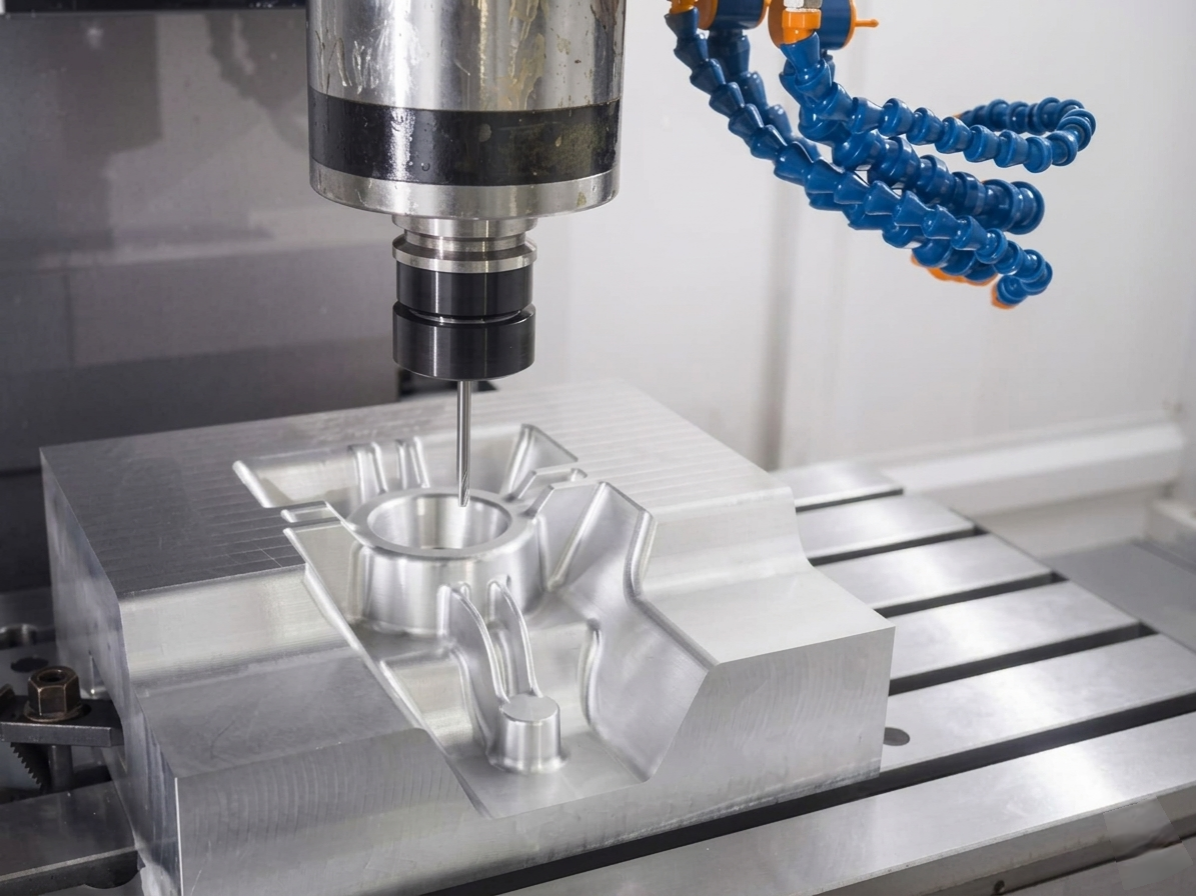

Creation Technocast has in-house die-shop equipped with all types of dies and tooling, jigs & fixtures using machines such as: VMC machines, Plano Milling Machines, Spark Erosion Machines, Hydraulic Copy Milling Machines, Heavy Duty Lathe Machines, Die Sinking Machines, Spark Erosion Machine, Vertical Band Saw Machines and Heavy Duty Pillar Drilling Machines.
Production Process
Dies are produced using Wooden Pattern Graphite Electrode. Full sets of templates are fitted on sinking of the die for rigid dimensional checks and inspection.
When it comes to product development and manufacture, time is of the essence. That’s why Investacast has a competitive advantage when it comes to expediting rapid product development.
Tool Design & Production Capabilities

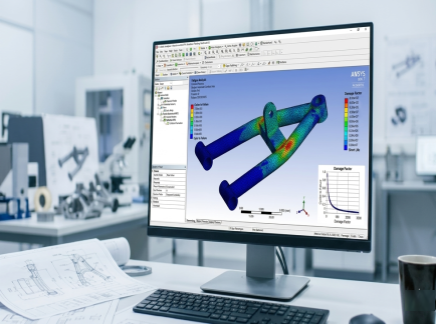

- Design all tools in-house using Solidworks CAD CAM software
- Produce tools ranging from basic to complex designs
- Operate manual and automatic operation wax machines
- Design and manufacture tools for all product volumes
Accepted CAD Formats
- IGES
- Solidworks SLDPRT
- Parasolid X_T
- Step .STP
- Other native CAD formats accepted
